  • PY-P2430F

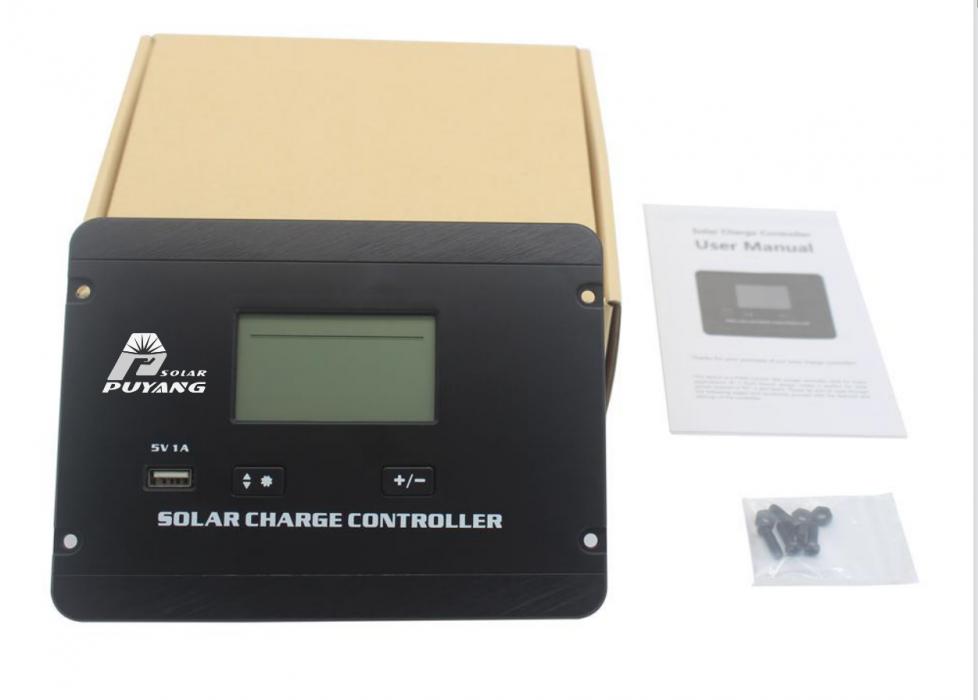

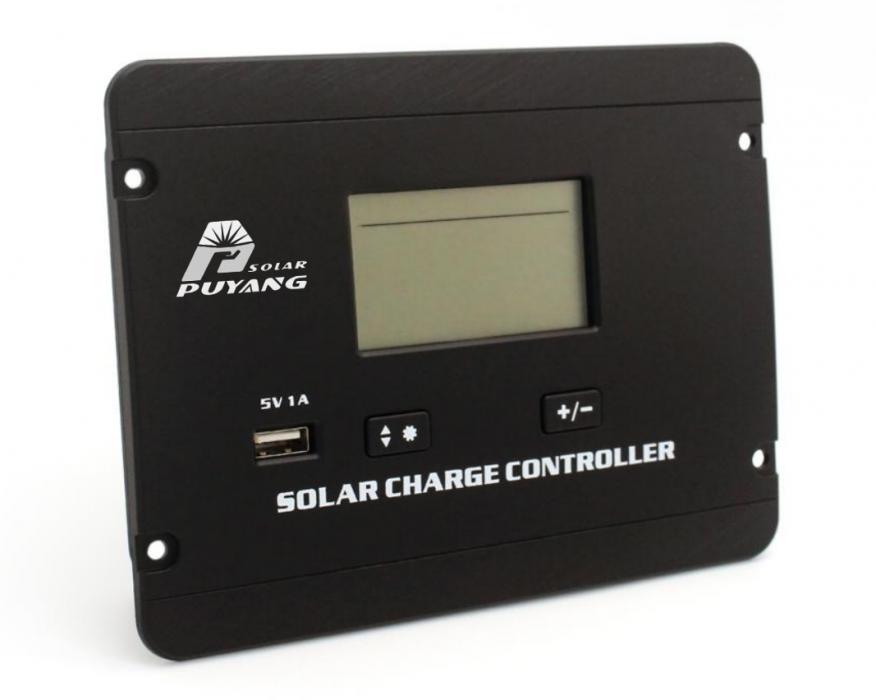

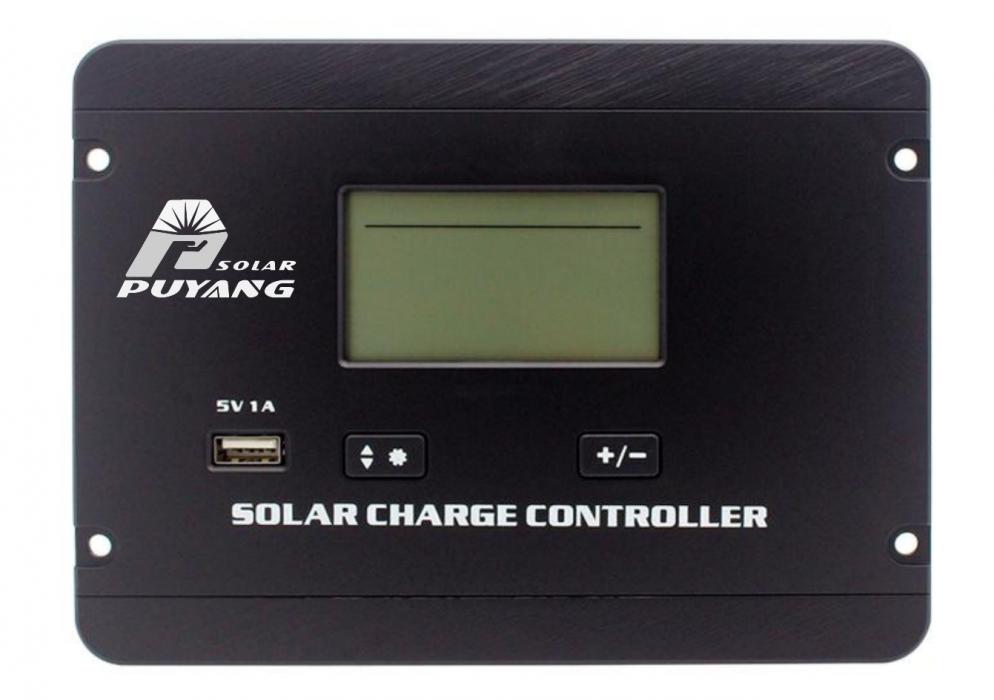

Name:PY-P2430F
System Voltage12V/24V Auto
Charge Current30A
Solar Panel Power450W/12V; 900W/24V
Max Solar Voc55V
Battery TypeLead acid(Sealed, Gel, Flooded) and lithium
Display TypeLCD
Gross Weight0.5KG
Dimension170x130x48mm

Product Description

Features:

1. PCBA common negative design, necessary for all negative grounded solar power systems.

2. 12/24V auto recognition for Flooded, AGM and GEL batteries. Lithium battery must be manually set. 30A rated charge current.

3. PWM 3-phase charging: equalize - boost- float (for Flooded, AGM and GEL).

4. User friendly with easy to use settings. For Lithium battery systems, there are options for parameter adjustments.

5. Flush mount design for easy installation.

6. Back lit LCD display with informative pages (system status, current, voltage, voltage value settings, etc).

7. Easy to use buttons for turning pages and controller parameter settings.

8. 5V USB port for mobile device charging. (plug and play)

9. Temperature compensation for better battery maintenance in extreme cold or hot environments.

10. Multiple built in protections including solar reverse connection, battery reverse connection, battery over-discharge, battery over voltage, load short

circuit.

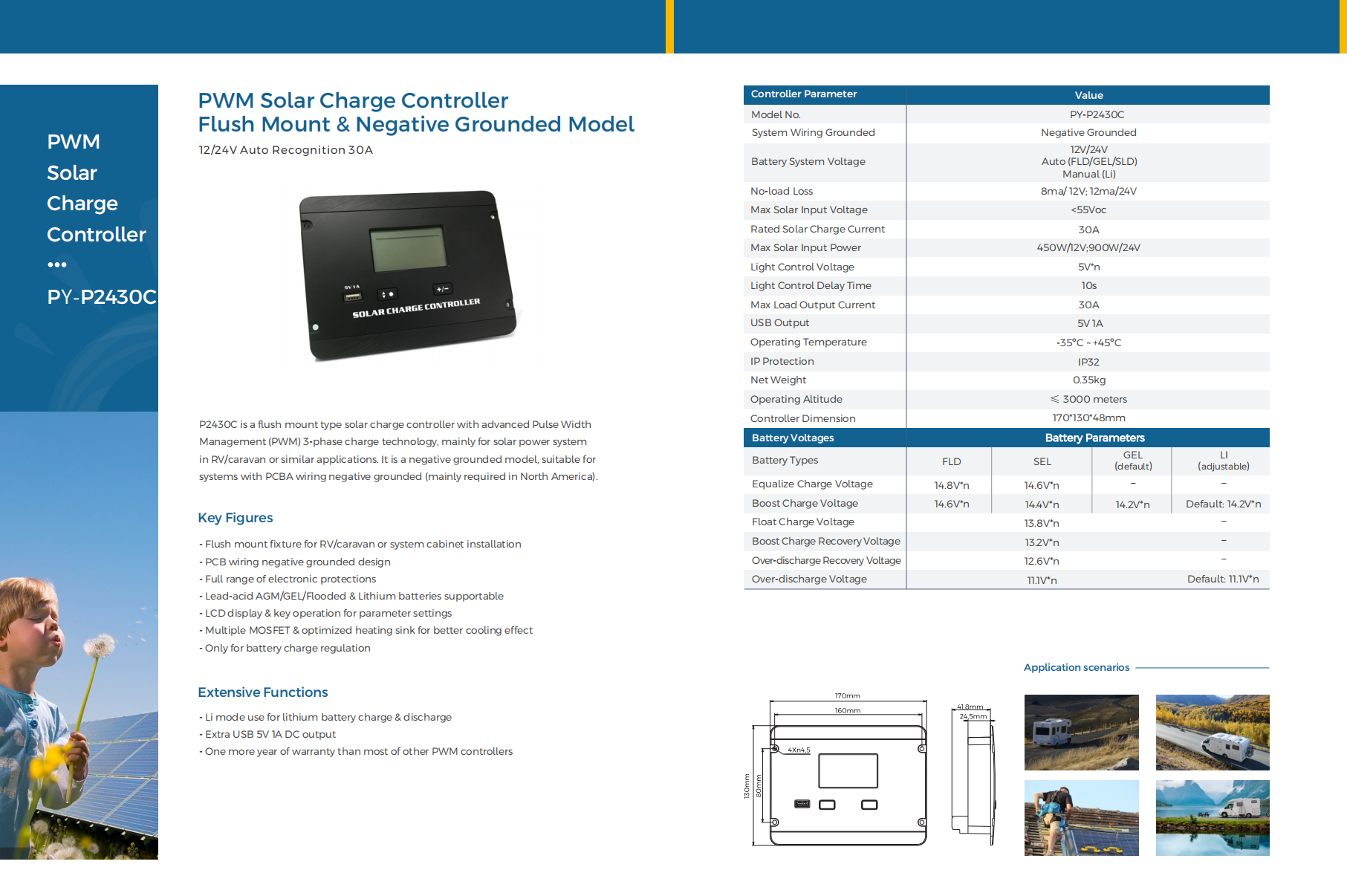

Parameters:

30A PWM参数.png
