  • PY-HF4830S60

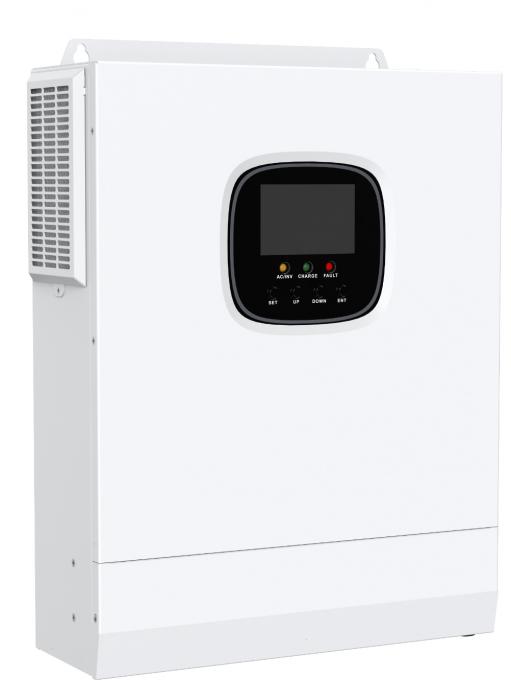

Name:PY-HF4830S60
Rated Input Voltage220/230Vac
Input Voltage Range(170Vac~280Vac) ±2/(90Vac-280Vac)±2
Frequency50Hz/ 60Hz (Auto detection)
Efficiency95
Maximum Bypass Overload Current40A
Output Voltage WaveformPure Sine Wave
Rated Output Power(VA)3000VA
Rated Output Power(W)3000W
Rated Output Voltage (Vac)230Vac
Peak Power6000VA
Maximum Charge Current60A
CommunicationUSB/RS485(Bluetooth/WiFi/GPRS)/Dry node control
Size (LWD)430mm338mm126mm

Product Description

Fetures:

● Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sine wave.

● Two output modes: mains bypass and inverter output; uninterrupted power supply.

● Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging.

● Advanced MPPT technology with an efficiency of 99.9%.

● Designed with a LCD screen and 3 LED indicators for dynamic display of system data and operating status.

● ON/OFF rocker switch for AC output control.

● Power saving mode available to reduce no-load loss.

● Intelligent variable speed fan to efficiently dissipate heat and extend system life.

● Lithium battery activation design, allowing access of lead-acid battery and lithium battery.

● 360 ° all-round protection with a number of protection functions.

● Complete protections, including short circuit protection, over voltage and under voltage protection, overload protection, reverse protection, etc.


Parameters:
